Polaris Sportsman 400/450/500/570/800/ETX Snow Plow System by KFI

Commercial-Grade Power for Your Personal Rig

Don't just push snow—dominate it. This KFI Snow Plow System for Polaris Sportsman models (including the 400, 450, 500, 570, 800, and ETX) is engineered specifically for the Polaris Sportsman chassis, turning your ATV into a high-performance clearing machine. By anchoring the plow to the center of your frame, KFI ensures maximum leverage and protects your front end from impact stress.

Kit includes:

• (1) Plow Blade (your choice of size)
• (1) ATV Push Tube
• (1) Vehicle Specific Mount

All Plow Components Feature:

• Complete installation instructions included
• All mounting hardware included
• KFI satisfaction guaranteed
• KFI Warranty
• Powder coated for maximum durability
• 100% Made in the USA

ATV Straight Plow Blades

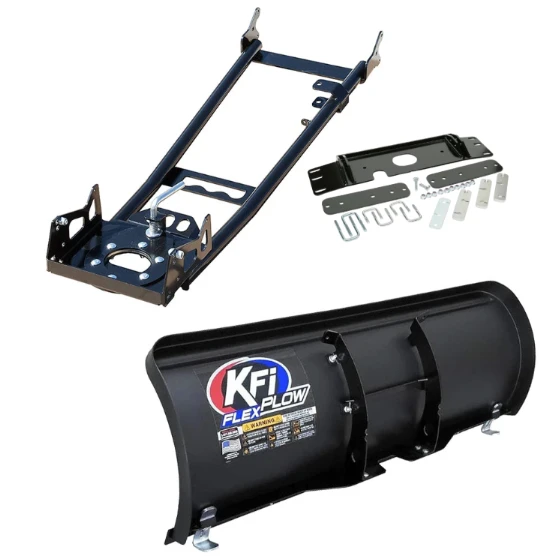

• 50" ATV Flex Blade (Poly) - #105950:
  • Rolls Snow Off to the Side, Great for Continuous Plowing of Long Driveways and Paths
  • Our Lightest Blade, Fully Assembled At 25lbs.
  • 50” Width Flexible Black Poly Vacuum Formed Face
  • 3/16” and 10 Gauge Grade 50 Steel Rib and Frame Construction
  • Shot Blasted and Powder Coated Black
  • 2-Sided 3/16” Grade 50 Steel Wear Bar
  • 17” Vertical Blade Face Height
  • Works With Current KFI No.105000 Or 105590 ATV Tube System
  • 1/4” Thick Adjustable Skids
  • Complete Installation Instructions Included
  • All Mounting Hardware Included
  • 1-Year KFI Warranty

• Pro-S Steel Blade (Straight):
  • Pushes snow straight ahead or to the sides up to 25 degrees
  • Added gussets for the wider width
  • The 66" & 72" blades include a 7" high 2-ply top rubber flap
  • Measures 16” Vertical blade face height with an approximate 21” height with snow flap
  • Fully-adjustable blade skids with bolt-on brackets
  • Heavy duty 3"-diameter grade-50 steel skid plates
  • Blade Constructed of 11 ga steel
  • 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
  • Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
  • 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
  • Wear Bar attached with Heavy Duty Grade 8 Bolts
  • 2-Year KFI Warranty
  • Available in 48", 54", and 60" widths.
    • 48" ATV Pro-S Series Plow Blade (Straight) - #105048
    • 54" ATV Pro-S Series Plow Blade (Straight) - #105054
    • 60" ATV Pro-S Series Plow Blade (Straight) - #105060

• 60" ATV Pro-Poly Blade - #105860:
  • Includes a 7" high 2-ply top rubber flap
  • Dual Curvature face for supreme snow moving
  • Measures 21” Vertical blade face height with an approximate 27” height with snow flap
  • Fully-adjustable blade skids with bolt-on brackets
  • Heavy duty 3"-diameter grade-50 steel skid plates
  • Flexible Heavy Duty Black Poly face
  • 3/16” Grade 50 Steel Rib and Frame construction
  • Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
  • 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
  • Wear Bar attached with Heavy Duty Grade 8 Bolts
  • Complete installation instructions included
  • Works with KFI ATV & UTV Tubes
  • Includes Plow Markers
  • 2-Year KFI Warranty

ATV Mid-Mount Push Tube (#105000)

• Mid-Mount Design with 40-50% more lift height than our competitors Mid-Mount System
• Heavy Duty 1-1/2" 11 Gage Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 5 blade angle positions that rotate the blade up to 25 Degrees
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Also Works with Cycle Country ATV Mid-Mounts
• 2-Year KFI Warranty

ATV Plow Mount (#106020)

• Designed for the #105000 ATV push tube with pin up widths of 14.50" (Center on Center) using 3/8" Pin
• Constructed of 3/16" and 1/4" Grade 50 steel
• Unlike all other competitors mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• All mounting hardware included.
• Complete installation instructions included.
• The following models requires some drilling:
  • 2026 Sportsman Touring 570 Utility
  • 2025-2026 Sportsman X2 570
  • 2025-2026 Sportsman Big Boss 6x6 (570)

Optional Add-Ons:

• Winch: A winch is required to raise and lower the plow.
  • All ATV Winches come with a Handlebar Mounted Mini Rocker
  • Winches 3000lbs and over also come with a 14’ Corded Hand Remote
  • KFI 1-Year Limited Warranty
  • Steel Cable
  • Multi-Directional Zinc Plated Roller
  • Available in 2000 lbs, 2500 lbs, and 3000 lbs Rated Line Pull.
    • 2000 lbs (5/32" D x 49' L Steel Cable) - #A2000
    • 2500 lbs (3/16" D x 45.9' L Steel Cable) - #A2500-R2
    • 3000 lbs (3/16" D x 45.9' L Steel Cable) - #A3000
• Winch Mount (#101840): The bridge between your ATV's frame and the winch motor
  • Constructed of 10 GA GR50 steel
  • Designed to fit between in the OEM location below the radiator
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Mounts the same as OEM intended.
  • Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
  • Very easy to install.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Will work with Polaris Glacier Plow.
  • Roller fairlead and winch not included.
• Quick Plow Pulley & Soft Strap (106680/106470)
  • Purpose: Designed specifically for use with steel cable winches to improve lifting leverage and reduce wear on the cable and winch motor.
    • #106680 Quick Plow Pulley - Steel Cable : Specifically designed for the KFI UTV Plow System, this pulley features a large 2-1/8" steel wheel that prevents cable damage while improving lift geometry to reduce electrical strain and provide smoother, more controlled operation.
    • #106470 12" Soft Strap : This USA-made 12-inch soft strap features 1.20-inch wide heavy-duty webbing with a 3,200 lb break strength.
• Track Extensions
  • ATV Plow Track Extension (#105430): Necessary if your ATV is equipped with tracks
    • Works with KFI ATV Tubes (105000), KFI CC Conversion Push Tubes (105760), and KFI Hybrid ATV Plow Kit (105590)
    • Constructed of Heavy Duty 3/16” Grade 50 Steel
    • Extends ATV Blade 14.0” or 15.33” (two-position)
    • Shot Blasted before powder coating
    • Powder Coated TOUGH - Black
    • All Hardware included
  • ATV Push Tube Extension (#105720): Necessary if your ATV is equipped with larger tires or front brush guards
    • Extends push tubes 5.4 inches.
    • Specifically designed for use with KFI ATV Tubes #105000
    • Constructed of Grade 50 Steel
    • All Hardware included
    • When done plowing the lift will remain with the plow tubes
    • Shot Blasted before powder coating
    • Powder Coated TOUGH - Black
• Plow Markers: Increase your blade end visibility for added safety
  • Bolts to the side/ends of your blade
  • Includes two markers
  • M6 Hardware Included
    • Standard Pro-S Plow Marker Kit - #105640
      • 15.5 inches in length
      • 0.5 inches in diameter
      • 89-Degree Angled Steel Base
      • DOES NOT FIT THE POLY BLADES
      • Compatible with other brands - verify proper attachment method first
    • Pro-Poly Plow Marker Kit - #105810
      • 19.5 inches in length
      • 0.5 inches in diameter
      • Straight Base
      • DOES NOT WORK WITH THE PRO-S STEEL BLADE
